Wideband Sigma Delta PLL Modulator

Introduction

Two major requirements in mobile applications are efficient utilization of frequency spectrum by narrowing the channel spacing and fast switching for high data rates. This can be achieved by using fractional- N PLL architecture. They are capable of synthesizing frequencies at channel spacings less than reference frequency. This will increase the reference frequency and also reduces the PLL's lock time. Fractional N PLL has the disadvantage that it generates high tones at multiple of channel spacing. Using digital sigma delta modulation techniques. We can randomize the frequency division ratio so that quantization noise of the divider can be transferred to high frequencies thereby eliminatory the spurs.

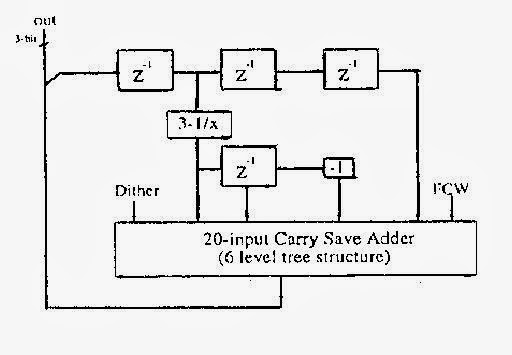

Modified diagram of PLL Modulator

 Conventional PLL

The advantages of this conventional PLL modulator is that they offer small frequency resolution, wider tuning bandwidth and fast switching speed. But they have insufficient bandwidth for current wireless standards such as GSM. So that they cannot be used as a closed loop modulator for digital enhanced codeless (DECT) standard.

Wide Band PLL

So the range of stability of modulator is reduced which will results in reduction of tuning range. More over the hardware complexity of the modulator is higher than Mash modulator. In this feed back feed forward modulator the loop band width was limited to nearly three orders of magnitudes less than the reference frequency. So if it is to be used as a closed loop modulator power dissipation will increase.

So in order to widen the loop band width the close-in-phase noise must be kept within tolerable levels and also the rise of the quantization noise must be limited to meet high frequency offset phase noise requirements. At low frequencies or dc the modulator transfer function has a zero which will results in addition of phase noise. For that the zero is moved away from dc to a frequency equal to some multiple of fractional division ratio. This will introduce a notch at that frequency which will reduce the total quantization noise. Now the quantization noise of modified modulator is 1.7 times and 4.25 times smaller than Mash modulator.

 At higher frequencies quantization noise cause distortion in the response. This is because the step size of multi bit modulator is same as single bit modulator. So more phase distortion will be occurring in multi bit PLLs. To reduce quantization noise at high frequencies the step size is reduced by producing functional division ratios.
